KEY FEATURES


MAIN PARAMETERS


  • Mobile Energy Storage Charging Station

    Dual-Function Mobile Energy Charger and Power Unit


    √ Mobile/Vehicle-Mounted √ 100/200/400kWh √ 180kW DC Output √ 100kW AC Output

    iTrailer is a cutting-edge mobile energy storage charging solution, offering high efficiency and large capacity. It can charge electric vehicles and power industrial sites, making it perfect for emergency EV charging, roadside assistance, and providing backup power in emergencies. The iTrailer eliminates the need for permits and lengthy construction, offering a streamlined setup and safe operation. Its detachable mobile tractor base ensures quick and easy deployment, whether on the roadside or in disaster-stricken areas. With its versatile applications and user-friendly design, the iTrailer is the ultimate tool for empowering your world, anytime and anywhere.

    Fixed, Mobile, and Vehicle-Mounted
    100/200/400kWh Capacities Options
    CCS1/CCS2, 180kW Fast-Charging
    Mobile BESS, 100kW Industrial socket
    OEM/ODM Brand Customization
    Easy Deployment, Ready to Use

    General Specifications

    Capacity
    100kWh
    200kWh
    400kWh
    DC Output
    120kW
    180kW
    360kW
    Size(mm)
    1950*1200*1200
    2350*1300*1500
    2750*1750*1700

    Chargeable Models







    All types of electric vehicles, engineering vehicles, heavy trucks, electric ships, etc



    Product Features

    Innovative features that make iTrailer the ideal mobile charging solution

    iTrailer Product Features

    System Application Diagram

    Visual representation of how iTrailer integrates into various environments

    iTrailer System Application Diagram

    MAIN PARAMETERS

    Technical specifications for the iTrailer 210kWh model

    Category Item Parameters
    Battery Capacity 210kWh
    Cell Type LFP, >5000 Cycles
    DC Output Voltage Range 200-1000Vdc
    Charging Power 180kW(Single Gun),90kW*2(Double Guns)
    Charging Guns CCS1/CCS2 * 2 (Charging dock optional)
    Cable length 7m
    DC Input Rated Current 200A
    Replenishment Method CCS1、CCS2 (Charging dock optional)
    AC Output Rated Power 100kW
    Output Socket 63A * 2,230V16A * 1
    AC Input Input Socket 63A(Industrial socket)
    PV Input Optional External PV Inverter
    Others Thermal management Liquid cooling
    Communication Protocol OCPP 1.6J
    Temperature Range -20~60℃
    HMI 10-inch
    Protection Degree Whole Machine IP54, Battery System IP67
    Size-Weight Dimensions(L*W*H) 2350*1320*1520mm
    Weight 2600Kg

    Product Physical Display

    Diverse Industry and Sector Applications

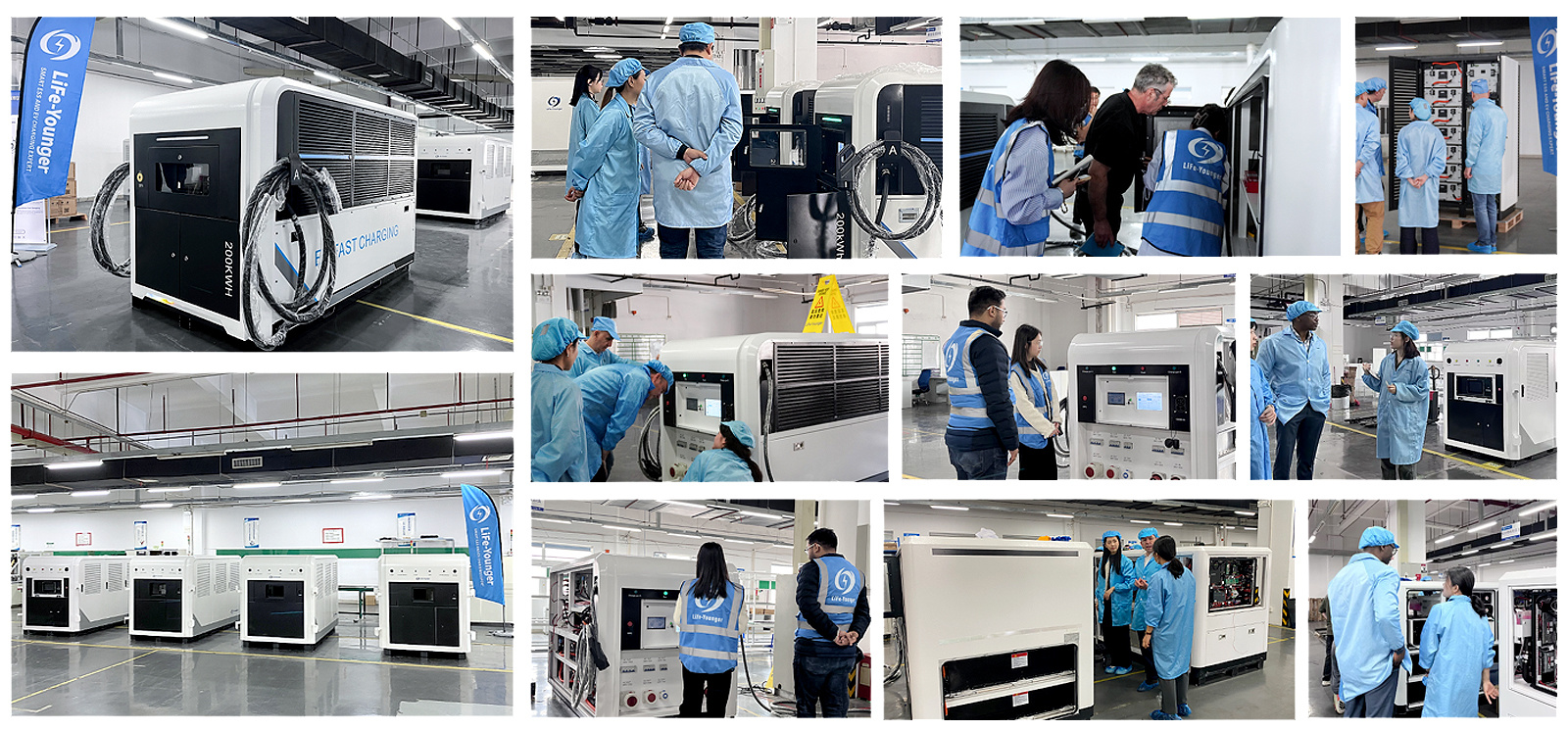

    iTrailer Physical Display

Application scenario


Construction Site/Heavy Equipment Charging

2024-08-29


这里是占位文字

Vehicle-Mounted Mobile Charging

2024-08-29


这里是占位文字

Public Transit/Fleet Charging

2024-07-10


这里是占位文字

Roadside Assistance / Mobile Charging

2024-07-25


这里是占位文字

Port / Dock Ship Charging

2024-07-25


这里是占位文字

Airport Ground Services

2025-05-06


这里是占位文字

Outdoor Activities / Camping

2025-05-06


这里是占位文字

Agricultural Production Support

2025-05-06


这里是占位文字

Outdoor Activities/Events Backup Power

2024-08-29


这里是占位文字
